PCB-Hochtemperaturetiketten

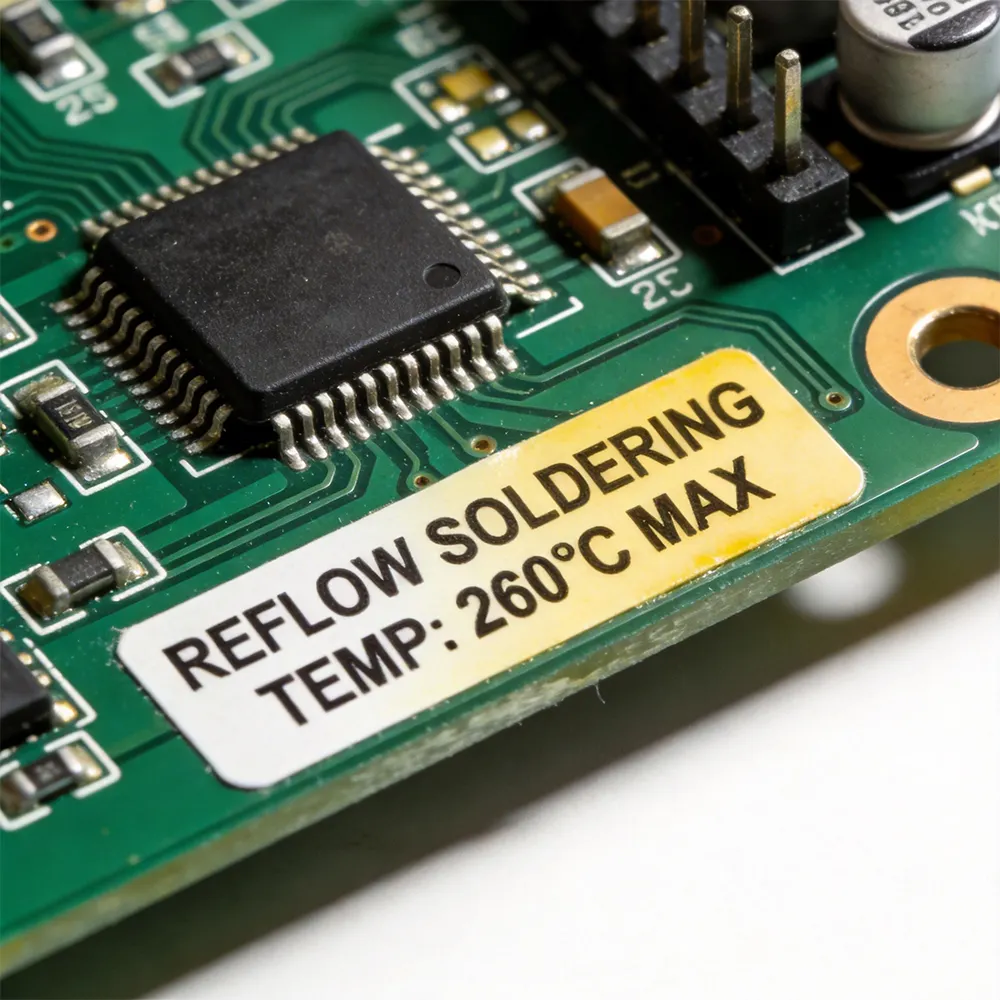

pcb high temperature labels are engineered with advanced multi-layer structures designed for circuit board manufacturing, Reflow-Löten, and semiconductor assembly environments. The top functional coating provides heat resistance during continuous exposure to soldering ovens and thermal cycling processes used in PCB production lines. A specialized imaging layer ensures that critical data such as serial numbers, QR-Codes, and component identifiers remain readable even under extreme temperature conditions. Darunter, a reinforced polymer film maintains dimensional stability during rapid heating and cooling cycles typical in electronic assembly workflows. A high-performance adhesive layer ensures secure bonding to circuit boards, chip carriers, und elektronische Substrate. A protective release liner enables precise placement in automated SMT and PCB assembly systems.

Herstellungsprozess

Manufacturers produce pcb high temperature labels through precision coating, Laminierung, and thermal curing processes tailored for electronics-grade reliability. Base materials are engineered under controlled environments to achieve stability under high soldering temperatures and chemical exposure. Surface treatment technologies enhance compatibility with thermal transfer printing, Lasermarkierung, and industrial inkjet coding systems used in PCB production. Adhesive formulations are applied with high-accuracy coating equipment to ensure uniform bonding strength across all batches. Nach Stabilisierung und Aushärtung, materials are slit into rolls or converted into sheet formats suitable for automated electronics manufacturing lines and circuit traceability systems.

Druckerei und Verarbeitung

pcb high temperature labels are processed using thermal transfer printing, Lasergravur, and high-resolution industrial marking systems. Essential data such as board IDs, component codes, and production tracking information are applied with precision accuracy. Automated labeling machines feed continuous rolls into high-speed PCB assembly lines. Die-cutting systems shape labels for flat and irregular circuit board surfaces. Finished labels are prepared for harsh production conditions including reflow soldering ovens, flux cleaning processes, and long-term electronic device operation environments.

Normen und Spezifikationen

These labels comply with strict electronics manufacturing standards for heat resistance and traceability. Die Materialdicke reicht typischerweise von 70 An 150 Mikron, abhängig von den Anwendungsanforderungen. Adhesive systems are engineered to withstand soldering heat, chemical cleaning agents, and mechanical vibration during PCB assembly. Standard formats include precision die-cut shapes and roll configurations compatible with automated pick-and-place labeling systems. Die Qualitätsprüfung umfasst thermische Beständigkeitstests, adhesion strength evaluation, Analyse der Druckhaltbarkeit, and environmental stress simulation under electronics manufacturing conditions.

Nutzungskontext

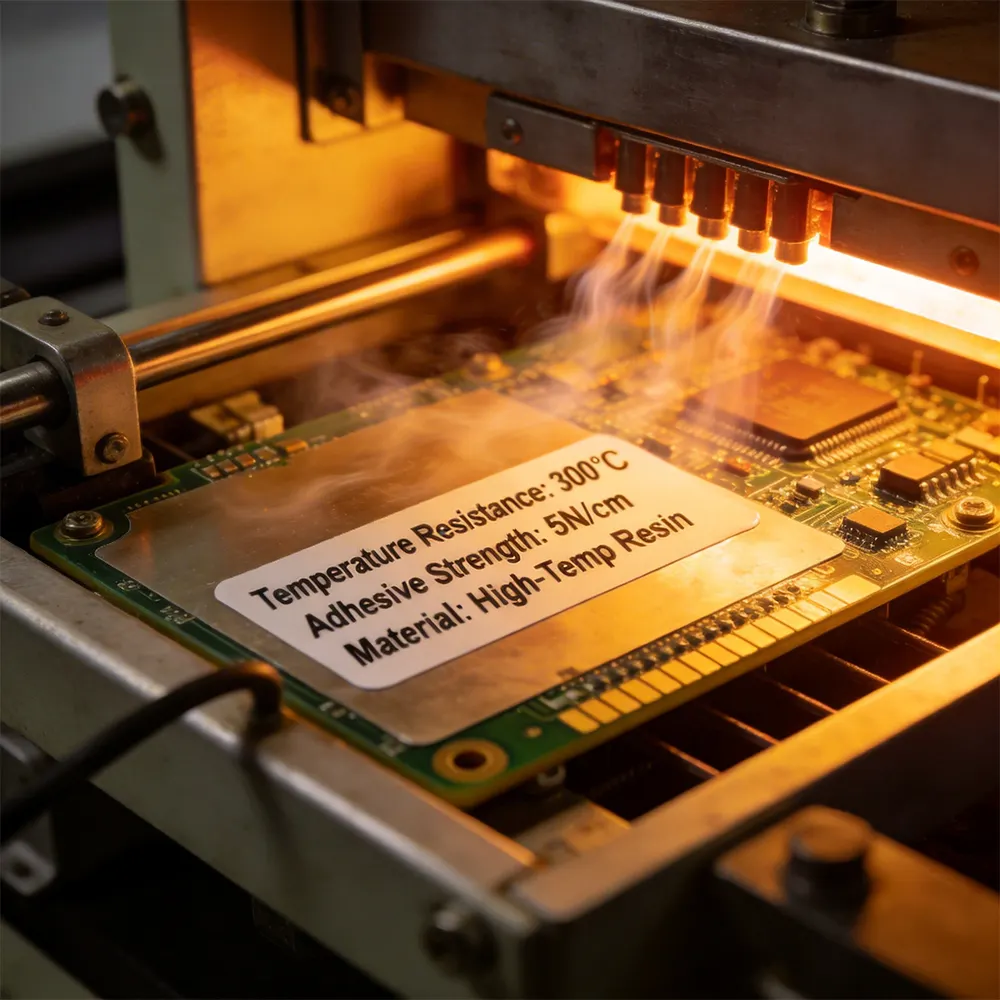

pcb high temperature labels are widely used in PCB fabrication, semiconductor assembly, SMT production, and electronic device manufacturing systems. Engineers apply labels during production to ensure full lifecycle traceability of circuit boards and components. Labels are attached to PCBs, Chips, modules, and electronic housings. During reflow soldering and thermal processing, Sie erhalten Lesbarkeit und strukturelle Integrität. Während der Inspektion, Verpackung, und logistische Arbeitsabläufe, they ensure continuous identification accuracy across advanced electronics manufacturing environments.
